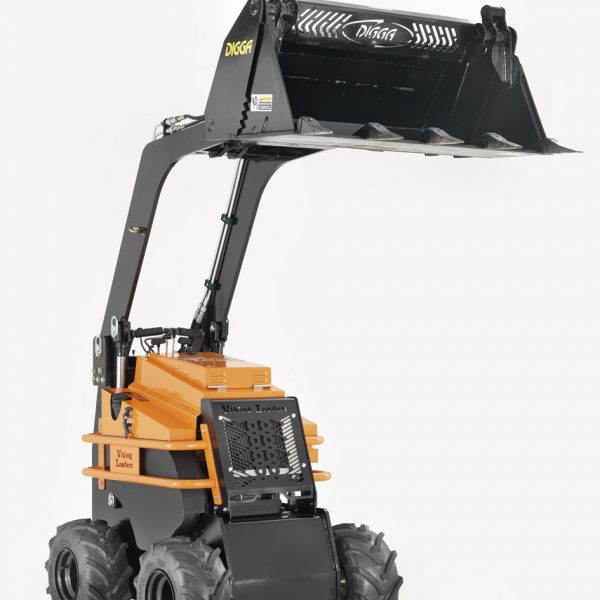

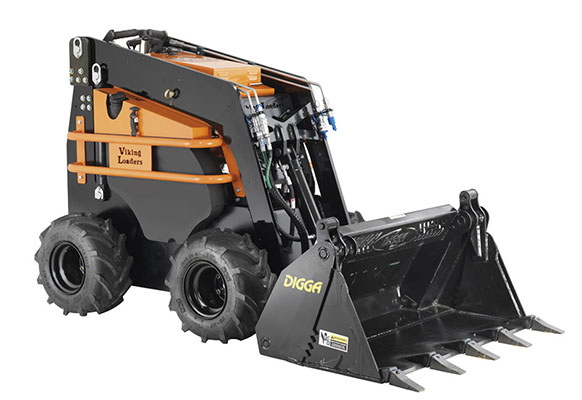

VIKING MINI LOADER
The Diesel Powered Viking Mini loader Tradesman is designed to make operators more productive. Viking Mini Loaders achieve this by using good ergonomic mechanical design, combined with innovative hydraulic design and world class components.
The Tradesman is designed and manufactured in Ringwood, Victoria; we use local sub-contractors and suppliers.
Viking mini loaders (or to give them their correct name – mini skid steer loaders) are a great all Australian made option for replacing Dingo K93s, Dingo K94s and Dingo 950s.
Viking Mini Loaders are:
These Viking mini earthmovers are equivalent in most areas of performance to a Dingo K9-4 (now Dingo Contractor) with the investment required to own one at approximately the Dingo K93 (now Dingo All-Rounder) mini loader price.
| PERFORMANCE | ||
| Hydraulics | ||
| Pump Sizes | 8.3 – 3.2 cc/rev | |
| Hydraulic Pressure | 3400 psi | |
| Hydraulic Capacity | 80 Litres | |
| Maximum Travel Speed | 8.5 Km/h | |
| Maximum Lift Capacity | 400 Kg (SWL) | |
| Wheel Motors | 4 x 470 cc | |
| ENGINE | ||
| Diesel | D902 Kubota 25hp | |
| Fuel Capacity | 25 Litres | |
| Dimensional Specifications | ||
| A | Overall Width | 950mm with 8.5” wheels |
| 900mm with 10” wheels | ||
| 740mm with 8.5” wheels | ||
| B | Overall Length | 1600mm |
| C | Overall Height | 985mm |
| D | Maximum Operating Height | 2165mm |
| E | Angle of Departure | 20 Degrees |
| F | Wheel Base | 800mm |
| G | Ground Clearance | 112mm (8.5” tyre) |
| Dump Height – Standard Bucket | 1940mm | |
| Dump Height – 4 in 1 Bucket | 1985mm | |
| Filtration | Replaceable Cartridge | |
| Machine Mass | 825Kg | |
| WARRANTY | ||
| Engine Warranty | 24 months or 2000 hours | |
| Product Warranty | 36 months or 1000 hours | |
