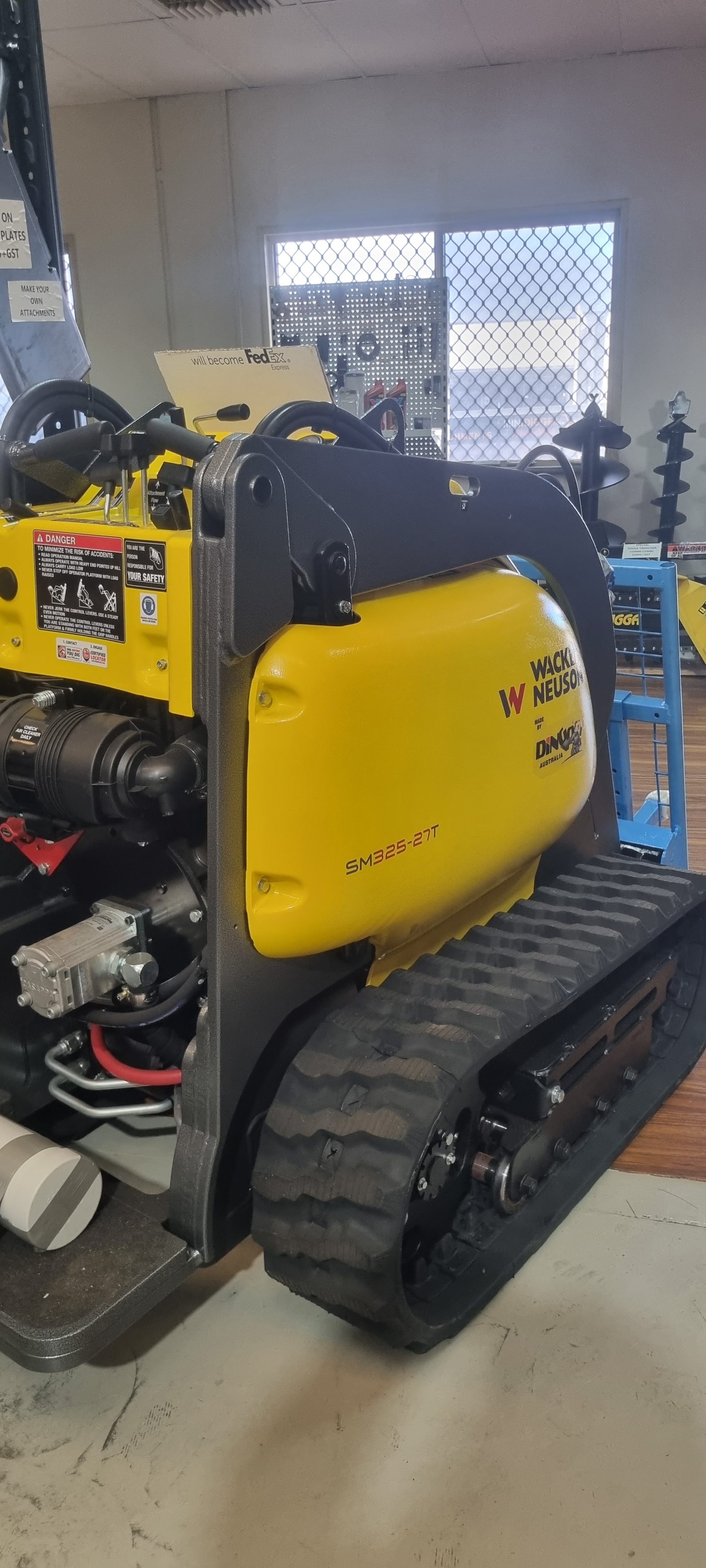

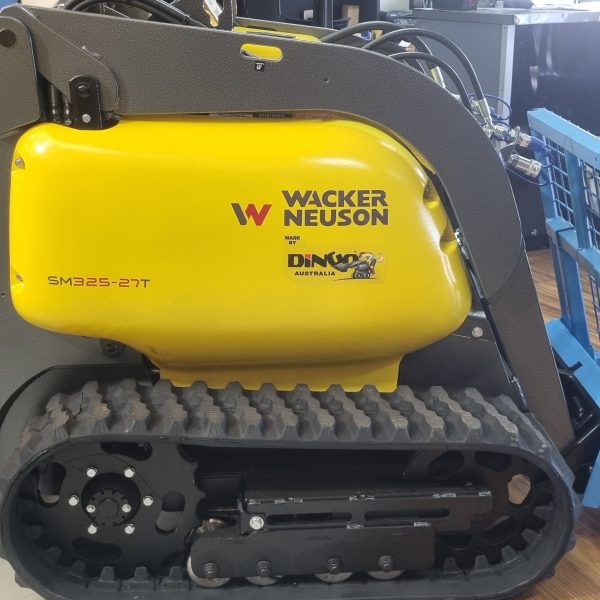

Dingo/Wacker SM325-24T TRACK MACHINE

 Dingo/Wacker SM325-24T TRACK MACHINE

New Dingo Track machine with 25hp EFI KOHLER engine

 Dimensions

Overall width 1,030 mm Overall length 1,600 mm Overall height 1,200 mm Max operating height 4 in 1 2,080 mm Turning radius with 4 in 1 bucket 1,300 mm Angle of departure 25° Wheel base 800 mm Ground clearance 135 mm Dump height standard bucket 1,450 mm Dump height 4 in 1 bucket 1,835 mm Reach fully raised 4 in 1 bucket 800 mm Height to hinge pin 1,940 mm Machine width 4 in 1 bucket 1,050 Hydraulic reservoir capacity 76 L Machine mass 1,093 kg Warranty 5 years / 5,000hrs

Performance

Engine 25HP EFI ,Engine make KOHLER Engine horsepower 25 hp , Hydraulic pumps 2 pumps Pump sizes 11 & 4cc Relief pressure (AUX) 3,200 psi (220 bar) Hydraulic output 47 L/m Max travel speed 7.5 km / h Rated lift capacity 325 kg WLL

file:///C:/Users/user/Pictures/DINGO%20SM325-27T.pdf

PLEASE NOTE PRICE EXCLUDES GST
